You can see the slots for the RAM and the heatsink for both the processor and GPU as well as the PCIE slot at the top of the picture. I have recently added a photo of the logic board I took out from my iMac below when I was taking it apart for anyone wanting to see what it looks like after removing. If you only want to upgrade the normal SATA HDD to a SSD it doesn’t take as long as you only have to take off the Display assembly.
I used ifixit’s kit (not a plug) and it was a long job but can be done as long as you are careful when removing the display assembly and also when putting it back on.
To get to the RAM and the Blade drive I literally had to take the whole Mac apart and remove the logic board as both the RAM slots and the Blade type drive are not accessible without doing this.

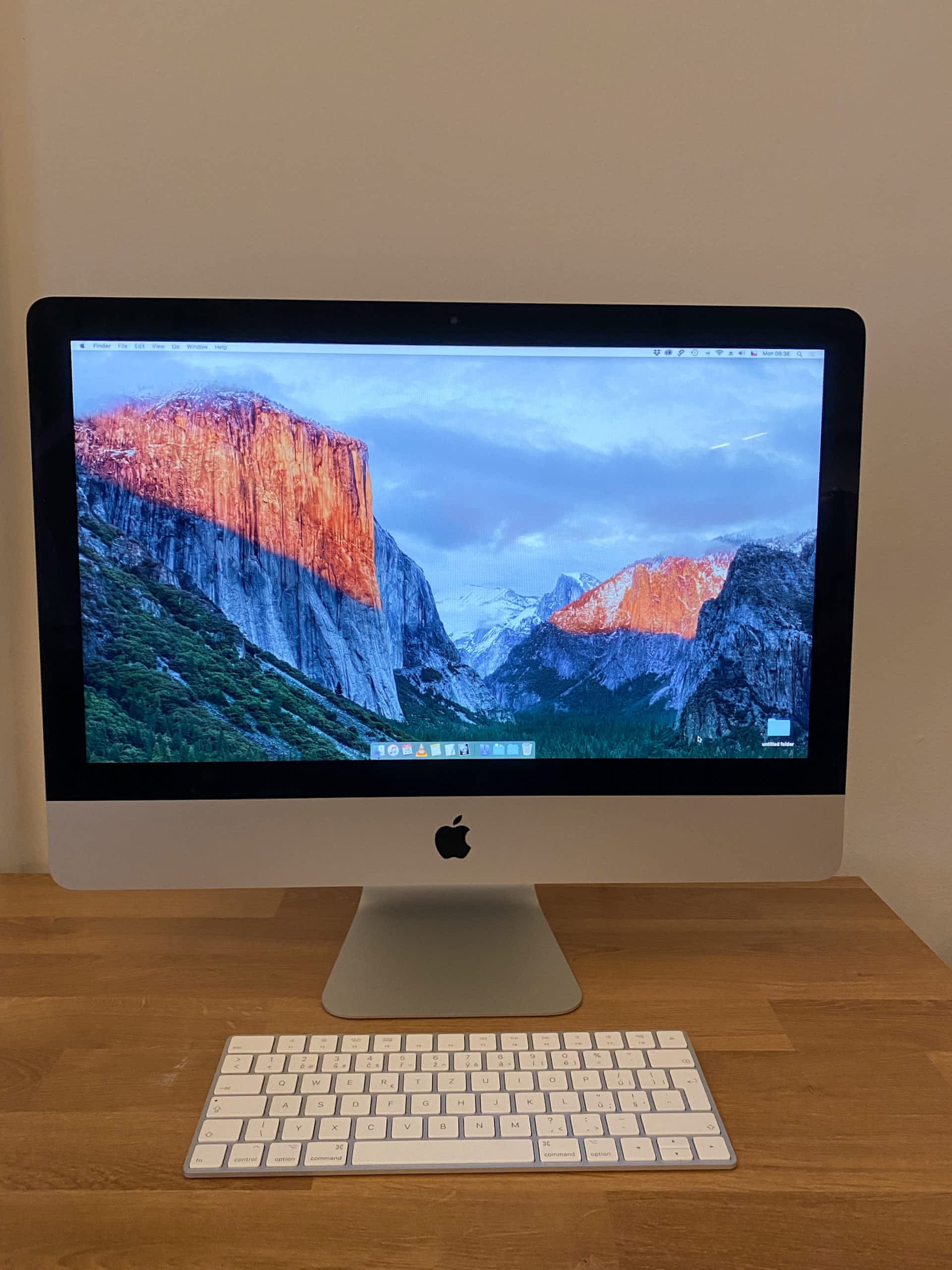

I also added a 500GB blade SSD from a MacBook Pro that I had spare from my late 2013 MacBook Pro as my iMac version has a blade SSD slot on the logic board. All OWC brand memory is thoroughly tested and assured to perform flawlessly with your iMac and is covered by a Lifetime Advance Replacement Warranty and a Money-Back Guarantee.I have a late 2013 iMac with 16GB RAM and upgraded 2.9 i5 processor that had a Fusion Drive setup. To make the memory installation process as stress-free and straightforward as possible, we provide step-by-step installation videos to walk users through the upgrade process and expert technical support, who are more than happy to answer any questions you may have. Since the debut of the Apple iMac in 1998, OWC has offered Apple-compatible memory upgrades for any Apple iMac desktop. We recommend professional installation for these models to ensure you upgrade your iMac RAM safely. If you own a 21.5-inch iMac or an iMac Pro, the memory upgrade process is more advanced and involves removing and reinstalling the iMac screen to access the memory. After opening this door, you can easily access and pull out the original memory and replace it with any other Apple-compatible memory modules. In the back of each 27-inch iMac, there is a small memory bay door that houses the memory cage. If you own a 27-inch iMac, upgrading the memory is simple and should only take about five minutes to complete.
